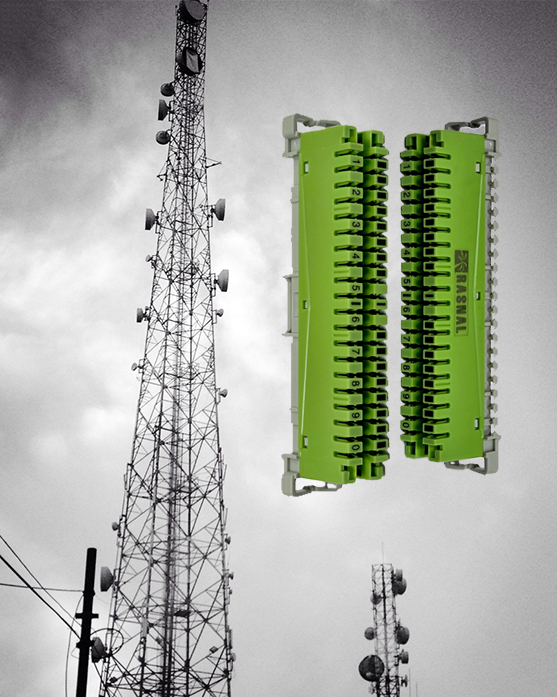

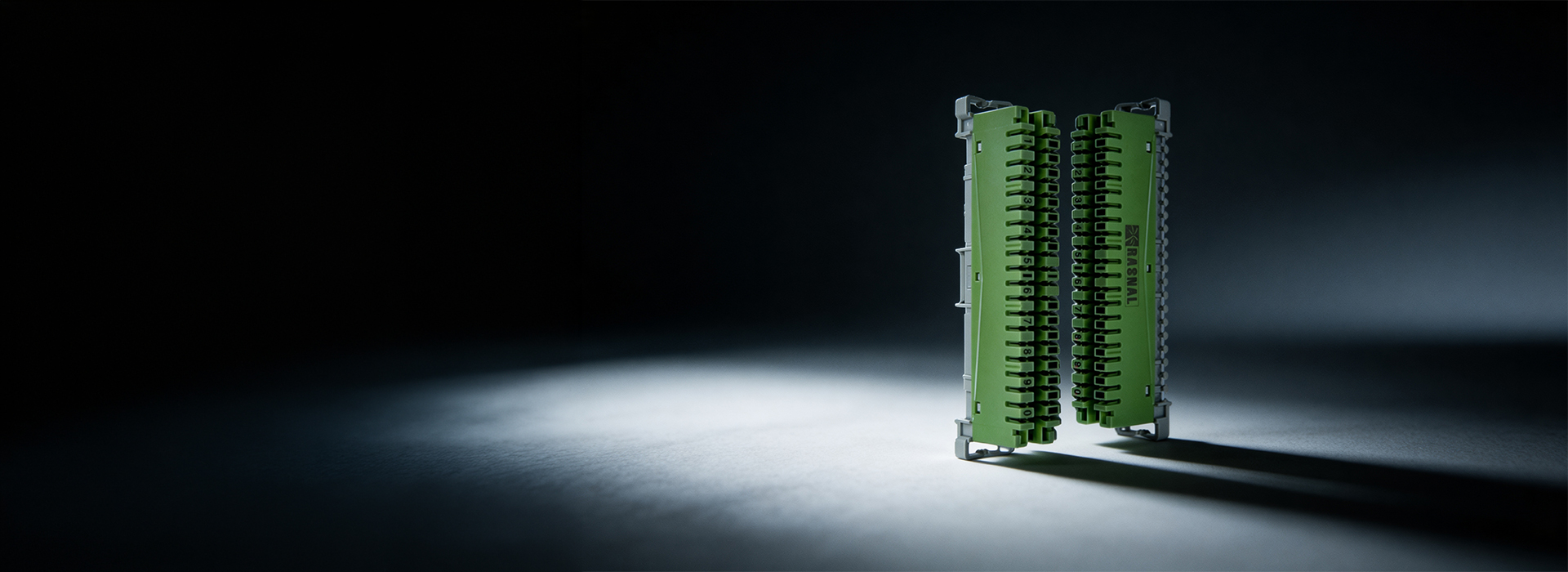

The Rasnal 10-Pair Connection/Disconnection Module is a standard, high-performance connector module designed for efficient management of telephone lines and other low-voltage wiring systems. It is widely used in IDFs (Intermediate Distribution Frames), cross-connection cabinets, and distribution points (DPs).

Key Features

10-Pair Capacity: Supports connection or disconnection of up to 10 pairs of wires.
Advanced IDC Technology: Uses Rasnal’s unique Insulation Displacement Contact (IDC) technique, clamping wires at a precise 45° angle for secure and reliable connections.
High Performance: Designed for low contact resistance, high insulation resistance, and excellent dielectric strength—ensuring long-lasting durability and superior signal integrity.
Disconnection Functionality:
● Features a two-piece, normally closed contact system.
● Provides individual pair disconnection capability.
● Includes four-wire test access for convenient line maintenance and troubleshooting.

Network Specifications

Parameter Specification
Material – Plastic Parts ABS
Dimension (H×W×D) 123.5 mm × 21.5 mm × 40.5 mm
IDC Contact Blade Phosphor Bronze with silver plating (0.5 µm) contact
IDC Contact 45° angle across wire axis angle across wire uis
Internal Dia. of Connectable Solid Wire 0.35–0.9 mm (26–20 AWG)
Outer Dia. of Connectable Solid Wire 0.68–1.5 mm with PE, PVC LSZH Insulation
Insulation Resistance ≥10 GΩ
Intermediate Resistance Between the Reed Terminators ≤7 mΩ
Contact Resistance ≤1 mΩ
Dielectric Strength 2 kV (eff)
Impulse Voltage Resistance 3.6 kV (8/20 µs)
Operating Voltage for Basic Insulation 210 Vdc, 150 Veff TNV
Transient Overvoltage for Basic Insulation 2.5 kV
Current Carrying Capacity 10 kA
Disconnection Module & Connection Module 5 kA
No. of Re-terminations ≥200
Max. Relative Humidity 95% Non-condensing
Operating Temperature -20 °C to +80 °C
Pulling Out Force ≥25 N
